Flagship case study / Source-grounded AI

AEC Code Compliance RAG

A local document-assistance system that retrieves, cites, or refuses.

The project treats evidence location, source identity, unsupported scope, and service behavior as separate engineering problems. It runs without a paid API and keeps every headline metric tied to a fixed evaluation artifact.

Open source Read evaluation

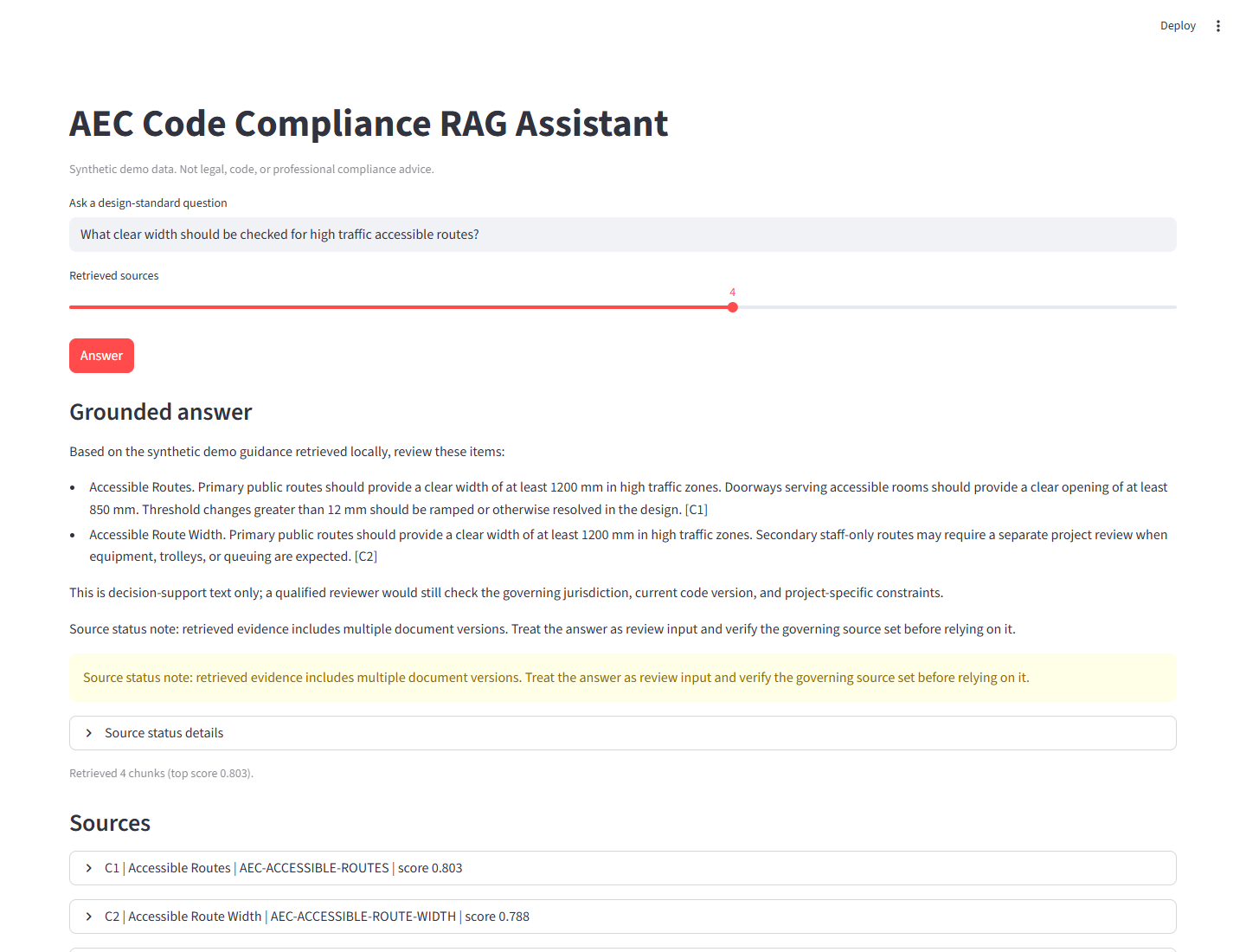

Actual local interface / labeled demo data

Problem

AEC questions need the right publication, passage, page, and source status rather than a plausible unsupported answer.

System

Page-aware ingestion, four local retrieval modes, structured citations, abstention, FastAPI contracts, and payload-free telemetry.

Evidence

Document Hit@1 0.952 and exact-target Hit@1 0.810 across 21 answerable public-source cases, with uncertainty and failures retained.

Boundary

Document assistance only. No authority validation, live amendment guarantee, compliance certification, or professional sign-off.

System

Evidence remains traceable from source to response

Each stage has a typed output and a visible control boundary. Retrieval can succeed at the document level while still missing the labeled supporting passage, so those measurements remain separate.

AEC RAG system map showing source validation, page-aware chunks, four retrieval modes, answer controls, service boundary, metrics, and professional review — Generated from checked-in evaluator outputs and architecture metadata. The professional-review boundary is part of the system, not a footnote.

Measured behavior

Strong publication retrieval, weaker passage localization

The harder exact-target and page-level metrics prevent the document score from being mistaken for answer support. Labels were authored from the fixed local snapshot and have not been independently expert-reviewed.

Document Hit@10.95295% Wilson interval [0.773, 0.992], n=21

Exact-target Hit@10.810Manually labeled supporting chunks, n=21

Source-page Hit@10.77818 page-labeled answerable cases

No-answer2 / 2Too small for a broad abstention claim

Document, exact-target, and source-page retrieval metrics — Expected publication retrieval is easier than locating the labeled supporting evidence.

Point estimates and 95 percent intervals for the fixed public-source retrieval cases — Intervals describe this fixed authored set only; they do not establish external validity.

Engineering decisions

Designed for inspection before fluency

The most important choices make incorrect confidence easier to detect and reproduce.

Stable evidence identity

Source hashes, page numbers, headings, clause identifiers, and word offsets survive ingestion so citations can be tested rather than formatted after generation.

Comparable local baselines

TF-IDF, BM25, dense LSA, and hybrid ranking share one corpus and query set. The hybrid-versus-BM25 MRR interval includes zero, so mode superiority remains inconclusive.

Fail-closed answer path

Unsupported scope and weak evidence produce an explicit no-answer response. Source-status warnings remain attached to retrieved material.

Bounded service evidence

Contract and fixed-workload checks cover authentication, validation, redaction, telemetry durability, and in-process response objectives without claiming deployment or uptime.

Retained failure

Publication-level success can conceal evidence-level misses.

Exact-target Hit@1 trails document Hit@1 by 0.142. That gap is shown as a result to improve, not rounded away as a successful RAG claim.

Inspect failure analysis

Run locally

Reproduce the default evidence path

The default corpus is bundled and synthetic so the evaluation, service checks, tests, and interface run without network access or paid APIs.

python projects/aec-code-compliance-rag/scripts/evaluate_retrieval.py python projects/aec-code-compliance-rag/evaluate_service.py python -m pytest tests/test_rag.py tests/test_rag_service.py streamlit run projects/aec-code-compliance-rag/app.py
